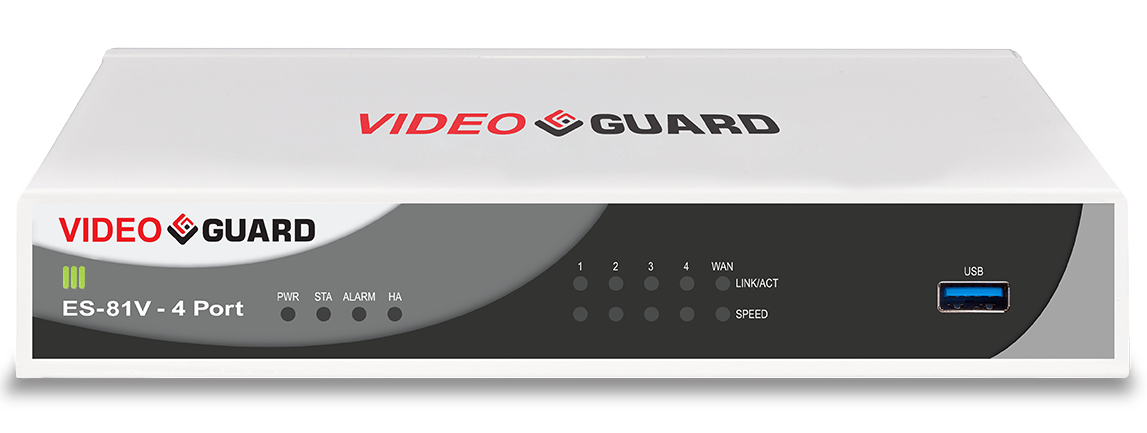

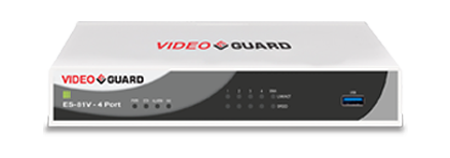

ES-81V – 4 Port

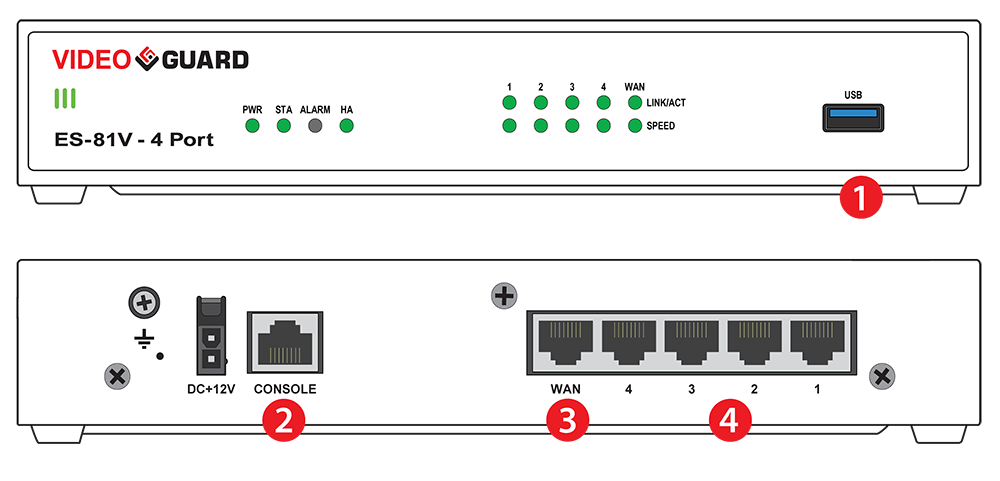

  • 1

    USB Port

  • 2

    Console port

  • 3

    1 x GE RJ45 WAN Ports

  • 4

    4 x GE RJ45 Switch Ports

Hardware Specifications GE RJ45 Switch Ports 4 GE RJ45 WAN Ports 1 USB Ports 1 Console (RJ45) 1 System Performance Throughput 950 Mbps Latency (64 byte UDP packets) 130 μs Throughput (Packets Per Second) 180 Kpps Concurrent Sessions (TCP) 900,000 New Sessions/Second (TCP) 15,000 Dimensions Height x Width x Length (inches)1.61 x 8.27 x 5.24 Height x Width x Length (mm) 41 x 210 x 133 Weight1.982 lbs (0.899 kg) Form Factor Desktop Environment Power Required 100–240V AC, 60–50 Hz (External DC Power Adapter) Maximum Current100V / 0.6A, 240V / 0.4A Power Consumption (Average / Maximum) 13 / 15 W Heat Dissipation 52 BTU/h Operating Temperature -31–158°F (-35–70°C) Storage Temperature -31–158°F (-35–70°C) Humidity 10–90% non-condensing Noise LevelFan-less 0 dBA Operating Altitude Up to 7,400 ft (2,250 m)

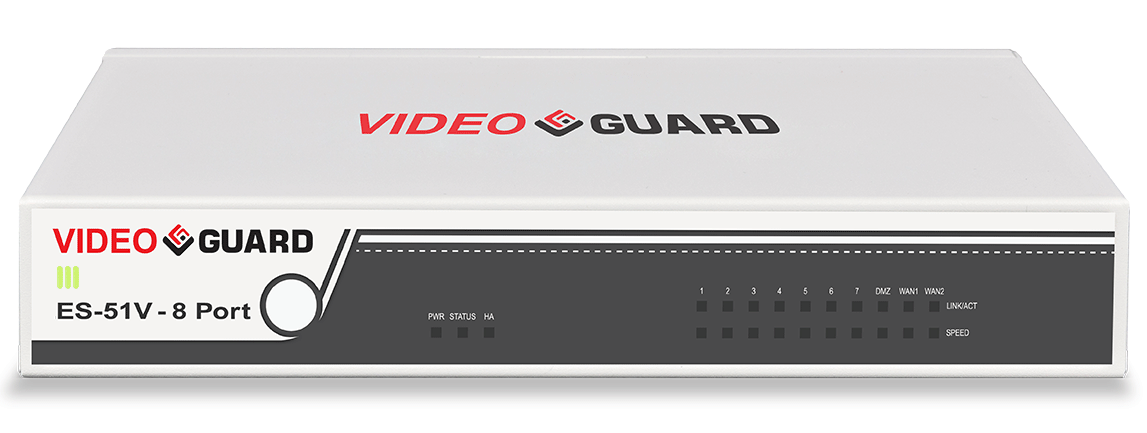

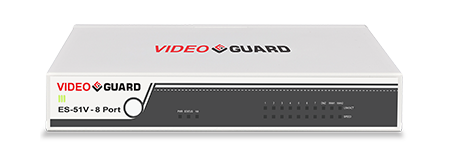

ES-51V – 8 Port

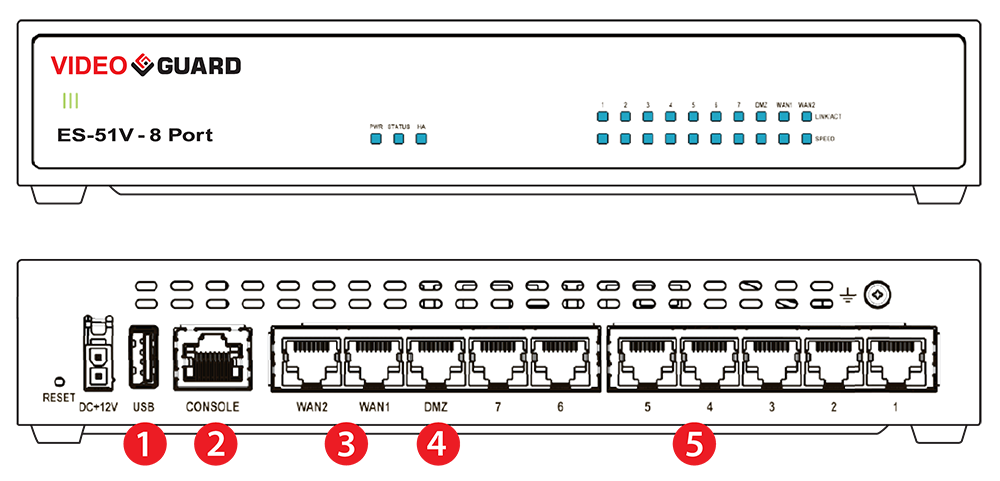

  • 1

    USB Ports

  • 2

    Console port

  • 3

    2 x GE RJ45 WAN Ports

  • 4

    1 x GE RJ45 DMZ Ports

  • 5

    7 x GE RJ45 Internal Ports

Hardware Specifications GE RJ45 WAN / DMZ Ports 2 / 1 GE RJ45 Internal Ports 7 USB Ports 1 Console (RJ45) 1 System Performance Throughput(1518 / 512 / 64 byte UDP packets) 3 / 3 / 3 Gbps Latency (64 byte UDP packets) 3 μs Throughput (Packets Per Second) 3 / 3 / 3 Gbps Concurrent Sessions (TCP) 1.3 Million New Sessions/Second (TCP) 30,000 Dimensions Height x Width x Length (inches) 1.5 x 8.5 x 6.3 Height x Width x Length (mm)38 x 216 x 160 Weight 1.9 lbs (0.9 kg) Form Factor Desktop Environment Power Required 100–240V AC, 50–60 Hz Maximum Current 110V AC / 1.5 A,220V AC / 0.75 A Power Consumption (Average / Maximum) 11.7 / 14 W Heat Dissipation 40 BTU/h Operating Temperature -31–158°F (-35–70°C) Storage Temperature -31–158°F (-35–70°C) Humidity 10–90% non-condensing Noise LevelFan-less 0 dBA Operating Altitude Up to 7,400 ft (2,250 m)

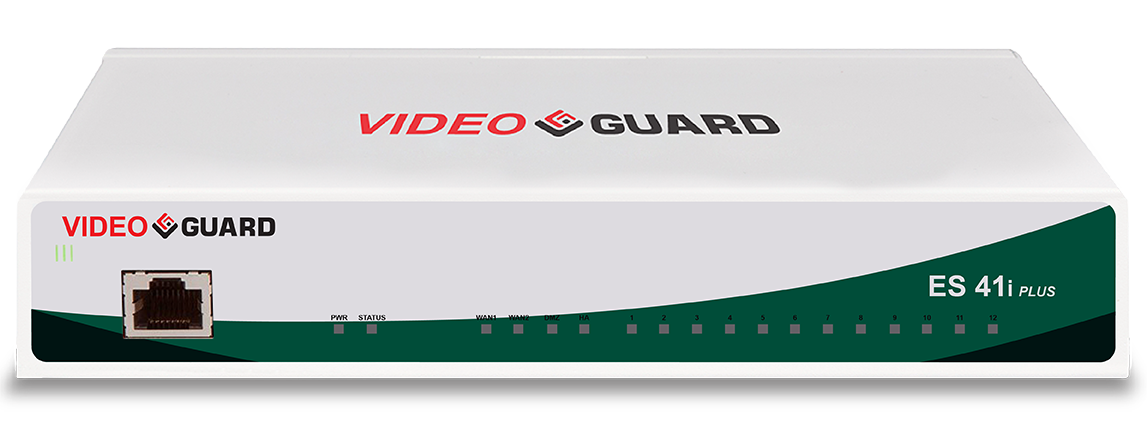

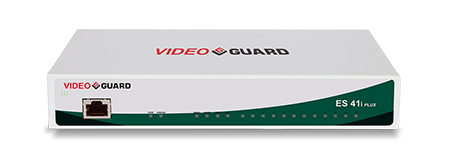

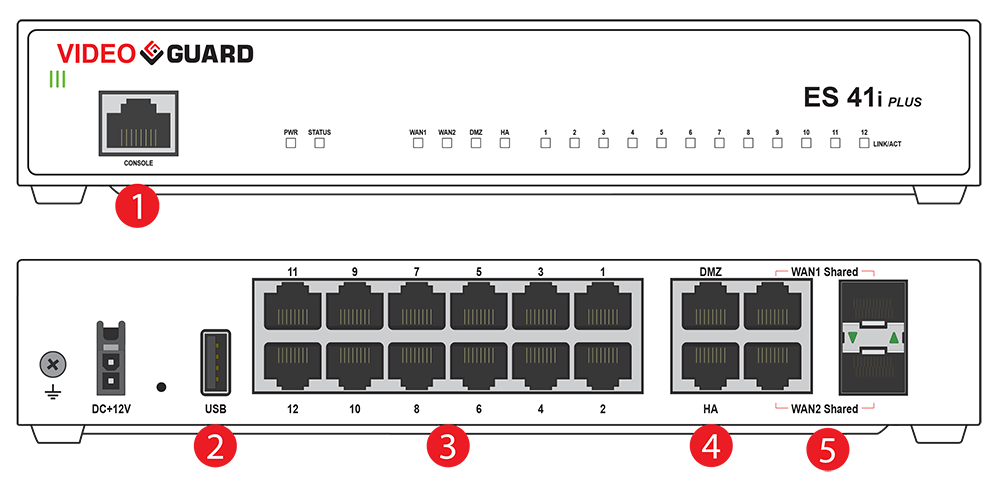

ES-41I Plus – 14 Port

  • 1

    Console port

  • 2

    USB Port

  • 3

    12x GE RJ45 Ports

  • 4

    2x GE RJ45 DMZ/HA Ports

  • 5

    2x GE RJ45/SFP Shared Media Pairs

Hardware Specifications GE RJ45 WAN Ports 2 GE RJ45 Switch Ports 12 USB Ports 1 Console (RJ45) 1 System Performance Throughput(1518 / 512 / 64 byte UDP packets) 4/4/4 Gbps Latency (64 byte UDP packets) 3 μs Throughput(1518 / 512 / 64 byte UDP packets) 6 Mpps Concurrent Sessions (TCP) 1.3 Million New Sessions/Second (TCP) 30,000 Dimensions Height x Width x Length (inches) 1.65 x 8.5 x 7 Height x Width x Length (mm) 42 x 216 x 178 Weight 2.65 lbs (1.2 kg) Form Factor Desktop Environment Power Required100–240V AC, 50–60 Hz Maximum Current 100V AC / 0.25A,240V AC / 0.11A Power Consumption (Average / Maximum) 18 W / 25 W Heat Dissipation 85.30 BTU/h Operating Temperature -31–158°F (-35–70°C) Storage Temperature -31–158°F (-35–70°C) Humidity 20–90% non-condensing Operating Altitude Up to 7,400 ft (2,250 m)
